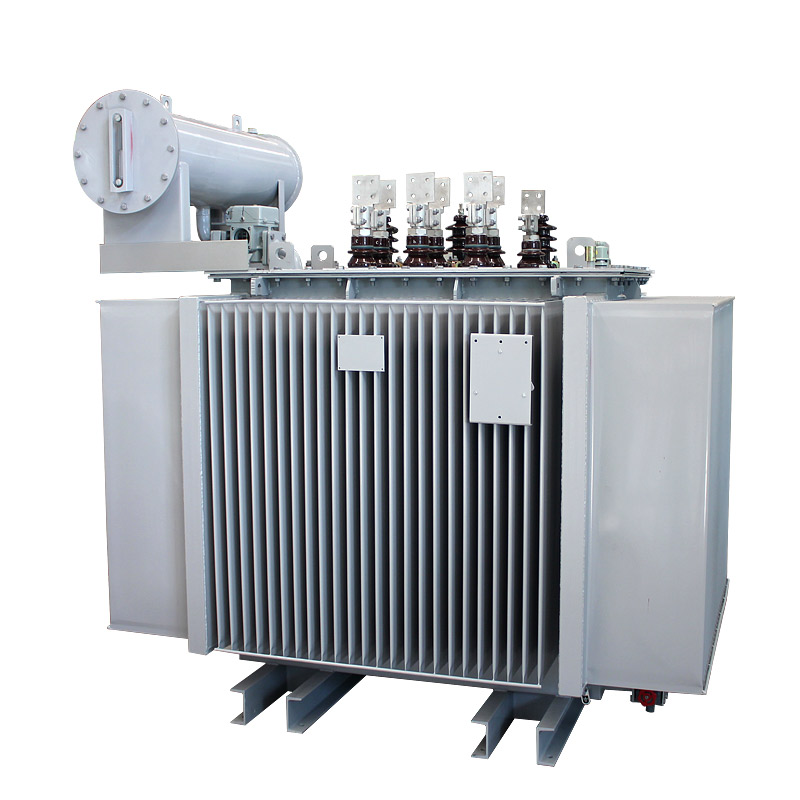

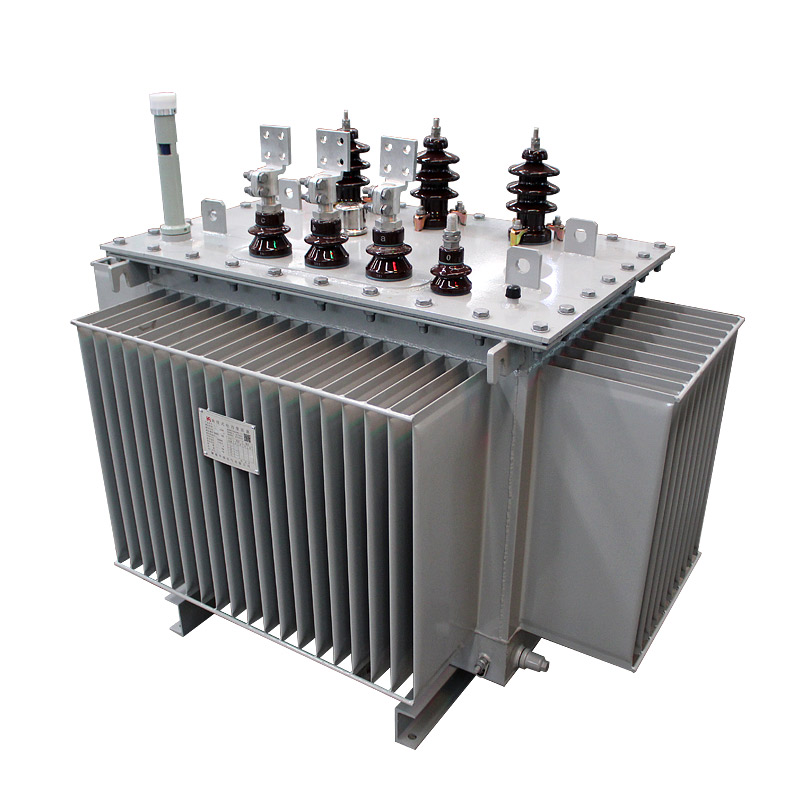

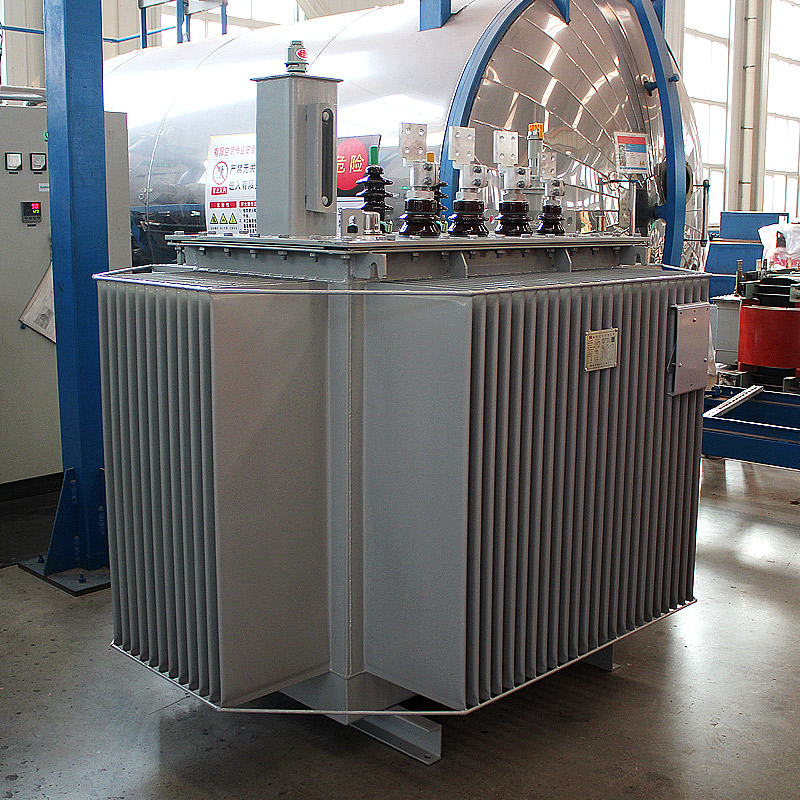

S22 OIL-IMMERSED TRANSFORMER

Model: S22
Rated capacity: 30kva、50kva、63kva、80kva、100kva、125kva、160kva、200kva、250kva、315kva、400kva、500kva、630kva、800kva、1000kva、1250kva 、1600kva 、2000kva 、2500kva
Voltage ratio: 10/0.4kV
Connection group: Dyn11/Yyn0
No load loss: 65W~1280W
Load loss: 455W~13360W
Short circuit impedance: 4%、4.5%、5%
Frequency: 50Hz
Technical standard: GB 20052-2020
Quality standard: ISO 9001:2015; ISO 14001:2015

sales@drbyq.com

S22 transformer refers to oil immersed transformer, S is three-phase, 22 is transformer performance level code, M represents fully sealed, kva represents the rated capacity of the transformer, 35/0.4 refers to the rated high voltage side of the transformer being 35kv and the low voltage side being 0.4kv.

-Can solve the problems of large capacity heat dissipation and high voltage insulation in transformers;

-High reliability, impact resistance, anti-interference, lightning protection, able to adapt to various harsh outdoor environments;

-Transformer oil has good insulation performance, good thermal conductivity, and is cheap and cost-effective;

-The use of high-quality cold-rolled silicon steel sheets for lamination has the advantages of high magnetic conductivity and low loss.

1. Quality Management System ISO 9001: 2015

The operation of the entire Dongrun Electric system is strictly controlled and managed. This ensures the quality of the product at all stages, from receiving customer requirements to design, materials, production, installation, testing, packaging, delivery, and after-sales, all of which are operated under a strict and tight process.

2. Environmental Management ISO 14001: 2015

Dongrun Electric took the lead in applying the ISO 14001: 2015 environmental management system. The implementation of this process demonstrates Dongrun’s responsibility to a wide range of customers. Dongrun is committed to providing the most environmentally friendly high-quality technical products.

3. Certification Certificate ISO / IEC 17025: 2017

The ISO / IEC 17025: 2017 certification confirms that Dongrun’s technical quality meets the requirements of all specific international testing and calibration laboratory standards. All Dongrun products are fully tested in qualified laboratories before leaving the factory to ensure stable quality and provide customers with absolute peace of mind.
